 High temperature NaI(tl) scintillation crystal for well logging

Product Description





NaI (Tl) Scintillation Crystal for oil & gas well logging tools



 NaI (TI) is a kind of scintillation crystal with good performance. It is grown by host material sodium iodide doped with appropriate percentage of thallium. The main emission wavelength is 415nm, which well matched with the working wavelength of photomultiplier tubes (PMTs). It has very high luminescence efficiency and exhibits no significant self absorption of the scintillation light and has good resolution ability to X-ray and γ-ray. It can be made into monocrystal or polycrystal with various dimensions and shapes.Our various specifications of FR-111G NaI(TL)scintillant has good output consistency and the high temperature NaI crystal used for petroleum logginghas three kinds of heat resistant performance: 100C, 150C and 175C. The best resolving power of NaI(TL) is 6.2% when detecting with 137Cs and the probing efficiency is≥10%.



Main Advantage:


1.Has highest luminescence efficiency among the current scintillation crystals.
2.The emission wavelength(415nm)match well with the working wavelength of photomultiplier tubes (PMTs).
3.Low cost.
4.High hygroscopic.

Main Application:Oil well logging, geophysical survey, nuclear medicine, environmental monitoring, high-energy physics, etc.







 Properties of crystal



 Density(g/cm3) 3.67
 Hardness (Moh) 2.1
 Cleavage 100
 Melting point(°C) 651
 Maximum emission(nm) 415
Refractive Index 1.85
 Light output(Photons/Mev) 38,000
 Expansion coefficient(/K) 47.4 x10-6
 Decay constant(ns) 250







 Scintillation Crystals are used to detect the energy and intensity level of gamma ray. The crystals can be used in various applications such as the safety inspection equipments and oil exploration equipments where gamma ray detection is required.
    The crystal is mounted in a metal housing with an optical window. The window side of the assembly is coupled to a photomultiplier tube (PMT) by optical medium. The PMT is connected to a voltage divider or the PMT has a built-in voltage divider. In some applications, the assemblies required to work normally in ruggedized and high temperature environments.
We can provide the options of aluminum, stainless steel, and titanium for the assembly housing metal. Titanium housing is usually used for the ruggedized assembly. The optical window can be either glass or sapphire. The sapphire is used for the ruggedized assembly.





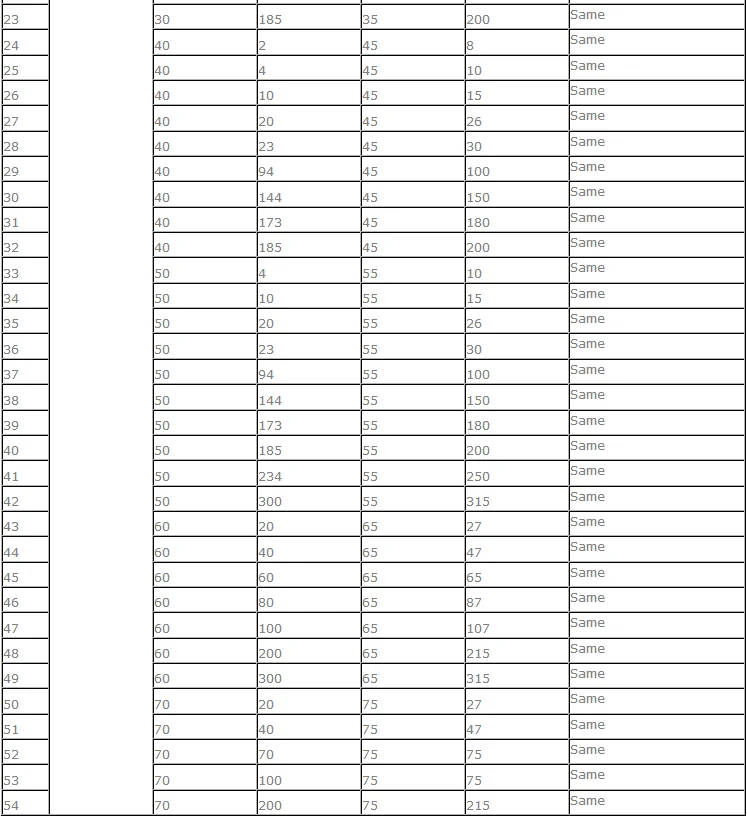

Specifications





Products

No.

Model

crystal dimensions

housing dimensions

Notes
(Temperature)

diameter
(mm)

thickness
(mm)

diameter
(mm)

thickness
(mm)

1



10

2

15

8

100C.150C or 175C

2

10

4

15

10

Same

3

10

10

15

15

Same

4

10

20

15

26

Same

5

10

23

15

30

Same

6

10

94

15

100

Same

7

20

2

25

8

Same

8

20

4

25

10

Same

9

20

10

25

15

Same

10

20

20

25

26

Same

11

20

23

25

30

Same

12

20

94

25

100

Same

13

20

144

25

150

Same

14

20

173

25

180

Same

15

30

2

35

8

Same

16

30

4

35

10

Same

17

30

10

35

15

Same

18

30

20

35

26

Same

19

30

23

35

30

Same

20

30

94

35

100

Same

21

30

144

35

150

Same

22

30

173

35

180

Same

23

30

185

35

200

Same

24

40

2

45

8

Same

25

40

4

45

10

Same

26

40

10

45

15

Same

27

40

20

45

26

Same

28

40

23

45

30

Same

29

40

94

45

100

Same

30

40

144

45

150

Same

31

40

173

45

180

Same

32

40

185

45

200

Same

33

50

4

55

10

Same

34

50

10

55

15

Same

35

50

20

55

26

Same

36

50

23

55

30

Same

37

50

94

55

100

Same

38

50

144

55

150

Same

39

50

173

55

180

Same

40

50

185

55

200

Same

41

50

234

55

250

Same

42

50

300

55

315

Same

43

60

20

65

27

Same

44

60

40

65

47

Same

45

60

60

65

65

Same

46

60

80

65

87

Same

47

60

100

65

107

Same

48

60

200

65

215

Same

49

60

300

65

315

Same

50

70

20

75

27

Same

51

70

40

75

47

Same

52

70

70

75

75

Same

53

70

100

75

75

Same

54

70

200

75

215

Same

Notes

Please contact us for your scintillation detector needs. We provide customized designs with the conventional large quantity prices.
Summary of OUR standard scintillation crystal assemblies


Crystal type

NaI, CsI

Metal housing material

aluminum, stainless steel

Window material

glass

Maximum working temperature

200 degC

Summary of OUR ruggedized scintillation crystal assemblies


Crystal type

NaI, CsI

Metal housing material

aluminum, stainless steel, titanium

Window material

glass, sapphire

Maximum working temperature

175 degC

Shock

1000G

Random Vibration

25G RMS
