Alarm: rotating red light, buzzer113-138dB, power≥50W
Directional Well Geologic Steering System (selectable)
100 Unit/Units per Year
Packaging & Delivery
good package for Hot sale SLS mud logging equipment
Qingdao,tianjin,shanghai or as customer's requirement
1 - 1
To be negotiated
Product Description >>
SLS-3 Mud Logging Unit is new generation logging equipment which is designed and manufactured by us, cooperated with famous International mud logging comany. SLS has advantages of a large amount of data, rich information, fast processing speed and accurate interpretation. The hardware and software configuration as well as the entire performance of the equipment have reached international leading level.
Main Configuration for SLS-3
D N V Certification (DNV2.7-1 is selectable)
Size: 8 m×2.5 m×2.8 m
Data Acquisition System
RS-485 Data Acquisition System
No. of 4~20 Ma Channel:40
No. of pulse channel:14
GC-3K gas Chromatograph
Total Gas :0~100% Min detectable Concentration:10 ppm Chromatograph:0~100% Min detectable Concentration:10 ppm Cycle:30 s
Min detectable Concentration:0.2% Range:0~100%
Safety Alarm System
SAS Safety Alarm System
Independent knowledge property right
1) Positive Pressure Explosion-prevention Cabin
2) DNV Certification
3) Lightning Strike Prevention System
4) Fast Chromatograph ( C1~nC5 : 30s )
5) Multiform Data Acquisition System, with safety barrier
6)More than 70 sets in China
Detailed Images >>
Positive Pressure Explosion-Proof System
Positive Pressure & explosion-proof with DNV certificate. A-60 level fire-proof Certificate,in compliance with IEC 60079-13 Standard Applicable to zone Ⅰ at wellsite Convenient installation Anti-jamming Ability

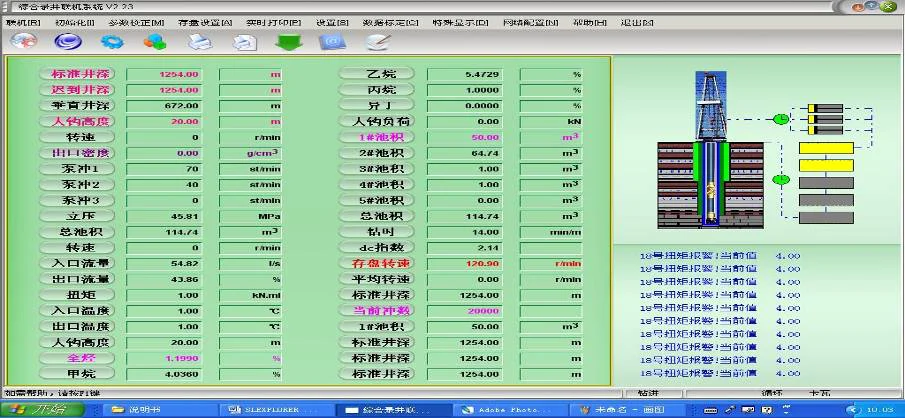

Windows 2000 / XP platform Data Sharing Through CDA English & Chinese Version Realtime Monitoring (numerical & curve) Engineering Program Kit Data Processing & Interpret Program Oil & Gas Evaluation

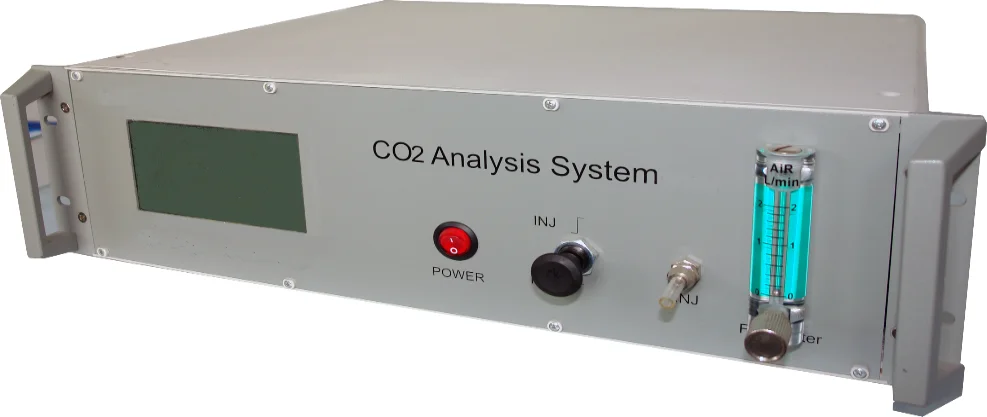

Based on infrared absorption principle Detection range:0.2%~100% Response time :≤10s Detection deviation:±2%FS Drifting zero:±2.5%FS Repeatable deviation :<2%
Wireless data acquisition system
Explosion-proof design with IP67 protection Over-current, over-voltage & short circuit protection Low-power consumption, can work continuously for at least 20 days with a single charge Communication distance: more than 300m WITS protocol, compatible with various kinds of mud logging units
Our Service >>
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Working Situation >>
1. Why do you choose our company?
We founded a perfect oil and gas equipment product supply chain. We have worked in the oil industry for about 10 years.We will checked our mill every months to make sure their quality. The after-service are charged by ourselves.So we can reply any problem within 24 hours.
2. How can you guanranty your quality?
Every time we will inspect our factories first. This inspect will include the persons, the present products, their scale etc. If everything is ok, we will start to cooperate. During cooperation, we will go to the factories to test the products to guanranty the products has good quality. If it doesn't meet our requirement, the goods will be refused.
3. Do you have price advantage?
For us, the quality is our first consideration. And the second consideration is the price. We couldn't say we have the lower price, because of quality issue. We need to say we have the best price.
4. How long do you do the export business?
For our sales persons, they have 8-10years experience to do the international business. They understand each step for the export and do good service for each of our clients.
